Lanbao Plastic Laser Displacement
Photoelectric Sensor 24vdc 4...20ma 50mm Laser Sensor With Ip67 Product Features ♦Exquisite appearance and light plastichousing, easy to mount and dismount ♦Only by pressing Long and short combination of two keys S, T to com-plete all function settings fastly ♦0.5mm diameter light spot to accurately measure very tiny objects ♦Key or remote teach-in to easily set response time for different applica-tions ♦Powerful function setting and flexible output way ♦Completeshieldeddesgin,strongeranti-interferenceperfomance ♦IP67 protection degree, able to work in water or dusty environment
Specifications Part number
| RS485 | PDB-CR50DGR |
| 4...20mA | PDB-CR50TGI |
Technical specifications
| Center distance | 50mm |
| Measuring range | ±15mm |
| Full scale(F.S.) | 30mm |
| Supply voltage | RS-485:10...30VDC;4...20mA:12...24VDC |
| Consumption power | ≤700mW |
| Load current | 200mA |
| Voltage drop | <2.5V |
| Light source | Red laser(650nm);Laser level:Class 2 |
| Light spot | Φ0.5mm@50mm |
| Resolution | 10um@50mm |
| Linear accuracy A B | RS-485:±0.3%F.S.;4...20mA:±0.4%F.S. |
| Repeat accuracy A B C | 20um |
| Output1 | RS-485(Support Modbus protocol) |
| | 4...20mA(Load resistance<390Ω) |
| Output2 | PUSH-PULL/NPN/PNP And NO/NC Settable |
| Distance setting | RS-485:Keypress/RS-485 setting |
| | 4...20mA:Keypress setting |
| Response time | 2ms/16ms/40ms Settable |
| Dimension | 65*51*23mm |
| Display | OLED Display(size:14*10.7mm) |
| Temperature drift | ±0.02%F.S./°C |
| Indicator | Power indicator:Green LED;Action indicator:Yellow LED |
| | Alarm indicator:Yellow LED |
| Protection circuit D | Short circuit,reverse polarity,overload protection |
| Built-in function E | Slave address & Port rate setting;Zero setting;Parameter query |
| | Product self-check;Output setting;Average setting |
| | Single point teach;Window teach;Restore factory settings |
| Service environment | Operation temperature:-10...+50°C |
| | Storage temperature:-20...+70°C |
| | Ambient temperature:35...85%RH(No condensation) |
| Anti ambient light | Incandescentlight:<3,000lux |
| Protection degree | IP67 |
| Material | Housing:ABS;Lens cover:PMMA |
| Vibration resistance | 10...55Hz Double amplitude1mm,2H each in X,Y,Z directions |
| Impulse resistance | 500m/s²(About 50G) 3 times each in X,Y,Z directions |
| Connection way | RS-485:2m 5pins PVC cable;4...20mA:2m 4pins PVC cable |
| Accessory | Screw(M4×35mm)×2,Nut×2, Washer×2,Mounting bracket,Operation manual |

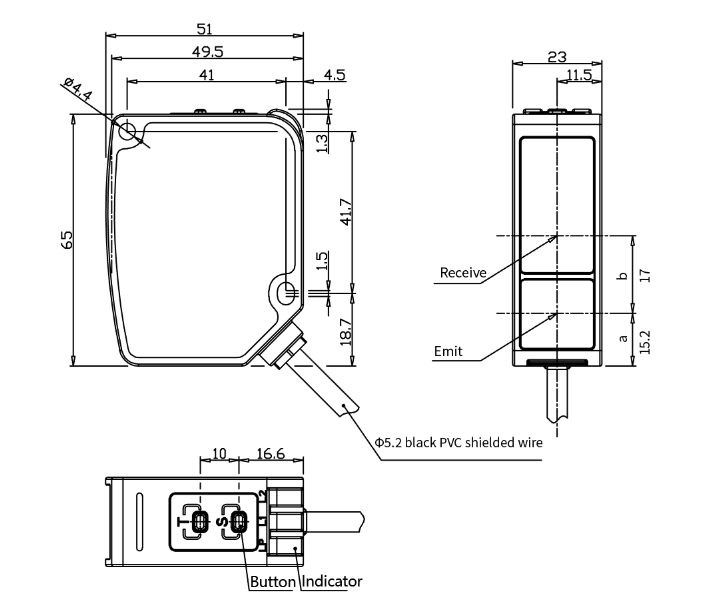

Remark: A Test conditions:Standard data at 23 ± 5 °C;Supply voltage 24VDC;30 minutes' warmup before test;Sampling period 2ms;Average sampling times 100;Standard sensing object 90% white card B The statistical data follows the 3σ criteria C Repeat accuracy:23 ± 5 °Cenvironment,90% reflectivity white card,100 test data results D Slave address,baud rate setting only for RS-485 series E Protecion circuit only for switch output F Product operation steps and precautions in "Operation manual" Dimension unit:mm
