Lanbao New U Shape Photoelectric Sensor Rated Distance 5mm Ip50 Dc 24v Optical Position Sensor
Basic Info

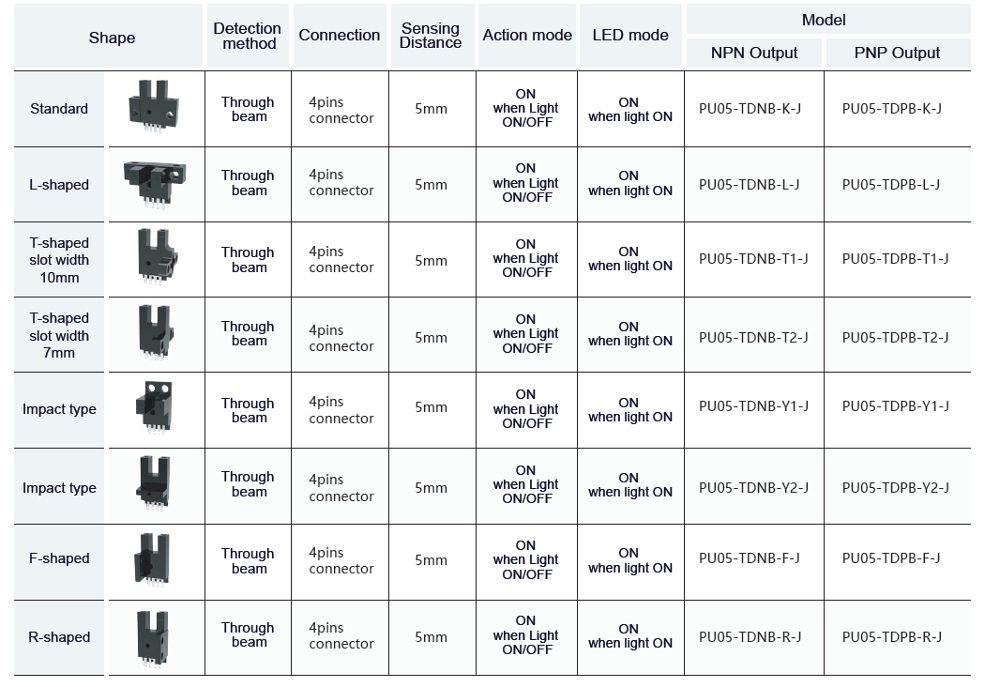

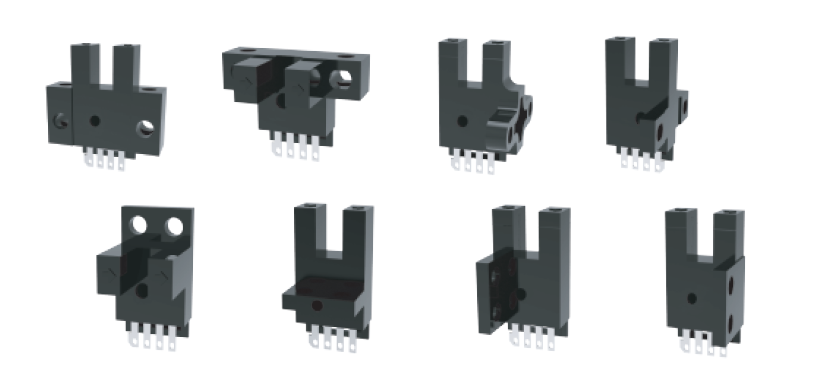

Product Description Lanbao New U Shape Photoelectric Sensor Rated Distance 5mm Ip50 Dc 24v Optical  Position Sensor   Product Features ♦High response frequency,up to 1KHz ♦Bright action indicator,easy action confimation ♦Wide voltage supply,supply voltage is 5.....24VDC ♦Eight shapes,various options   Part number     Accessories (Sold Separately) Connector (necessary for connector type sensor),to be ordered separately     Technical specifications

Detection type

Through beam

Sensing distance 5mm
Standard target >2*0.8mm opaque object
Hysteresis <0.025mm
Light source Infrared LED (940nm)
Indicater Red light:output
Supply voltage 5....24V DC±10%Vp-p
Consumption current

<35mA(NPN):<30mA(PNP)

Residual voltage  ≤ 0.8V (NPN); ≤ 1.3V (PNP)
 Load current  ≤ 100mA (NPN); ≤ 50mA (PNP)
 Response frequency  ≥ 1kHz (average value>3kHz)
 Anti-ambient light  Fluorescent lamp 1,000lux
 Ambient temperature  Action: -25℃…55℃, Storage: -30℃...80℃ (no condensation)
 Ambient humidity  Action: 5%…85%, Storage: 5%...95% (no condensation)
 Vibration resistance  20...2000Hz, dual amplitude 1.5mm, 2h each for x,y and z direction
 Shock resistance  500m/s², 3 times each for x,y and z direction
 Protection degree  IP50
 Connection  4pins connector/1m cable
 Housing material  PBT
 Cover material  PC
            Wiring diagram       Packaging & Shipping   Packing Packaging is designed according to specific products for better protection. Lanbao New U Shape Photoelectric Sensor Rated Distance 5mm Ip50 Dc 24v Optical Position Sensor   Company Information   About Lanbao Shanghai Lanbao sensing technology Co.,Ltd, member of China Instruments Manufacturers AssociationGoverning Units, established in 1998 in Shanghai, a leading domestic industrial automation product supplier,specializing in the research, development, production, sale and service of industrial sensors, sensor measurement  and control systems.   Our products cover over 30 series, 5000 specifications, including inductive sensor, photoelectric sensor,Capacitive sensor, Light Curtain,laser distance measuring sensors. Our products are widely used in warehouse logistics, parking, elevator,  packaging,semi conductor, drone, textile, construction machinery, rail transportation,chemical, robot industry. LANBAO Standard function series cylindrical Cable connection Proximity Sensor Lanbao New U Shape Photoelectric Sensor Rated Distance 5mm Ip50 Dc 24v Optical Position Sensor   Our advantage 1 day shipping guarantee for stock item 20+ years OEM & ODM history with global top sensor brands 20+ years sensor manufacturing experience 90+ global R&D patents and copyrights 500+ employees(100+in R&D) 5000+ specification products 33000 sqm factory 3,000,000 pcs products per yea   Factory show   We are the first Chinese sensor manufacturer who designs our own smart production workshop:totally 40 products lines  including complete production lines which worked with Mitsubishi (Japan). 200 staffsin production line and 3million products  per year. Lanbao New U Shape Photoelectric Sensor Rated Distance 5mm Ip50 Dc 24v Optical Position Sensor   Certificates   Our certificates Our standard products already obtained  ISO9001, ISO14001, OHSAS18001, CE, UL ,CCC,ROHS certificates. Lanbao New U Shape Photoelectric Sensor Rated Distance 5mm Ip50 Dc 24v Optical Position Sensor     International Exhibi   International Exhibitions We attend about 10 international exhibitions every year , for example, IAS(Shanghai), IMTS (US), SPS(Germany),SPS  (Guangzhou) and other  industrial shows  (textile, robot, elevator, logistic etc.) .As a professional sensor manufacturer  with core  competitiveness and complete value chain, our products sell well in more than 100 countries in the world,  allowing more customers to appreciate the charm of “passing the world, sensing the future”.   Lanbao New U Shape Photoelectric Sensor Rated Distance 5mm Ip50 Dc 24v Optical Position Sensor   Our partners Specializing  in  precision,Lanbao always adheres to the business philosophy  of”Quality First,Reasonable  Price, Prompt Delivery, and  Attentive  Service", maximize the needs and continuously create long-term value and potential growth for customers.With comprehensive and efficient services Lanbao's footprint has now spread to more than 100 countries and regions around the world such as US, Canada, Germany Thailand etc. Lanbao New U Shape Photoelectric Sensor Rated Distance 5mm Ip50 Dc 24v Optical Position Sensor Our customers Specializing in precision, Lanbao always adheres to the business philosophy of “Quality First, Reasonable Price, Prompt Delivery, and Attentive Service”, maximize the needs and continuously create long-term value and potential growth for customers. With comprehensive and efficient services, Lanbao’s footprint has now spread to more than 100 countries and regions around the world …… Lanbao New U Shape Photoelectric Sensor Rated Distance 5mm Ip50 Dc 24v Optical Position Sensor Our team Lanbao New U Shape Photoelectric Sensor Rated Distance 5mm Ip50 Dc 24v Optical Position Sensor FAQ   FAQ Q : What is the MOQ? A : 1pcs for our own available designs Q : Can I customize a special sensor? A : Sure Q : Can I get a lower price if I order large quantities? A : Yes, Cheaper prices with bigger size orders Q : Can I get a sample? A : Of course, but you need to pay the minimum sample fee Q : When will you ship my order? A : 1 day shipping guarantee for stock item and 3-4 weeks for non-stock items. Q : How about the quality guarantee period ? A : Our warranty period is one year since from shipping date. Q : Can I add or delete items from my order if I change mind? A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it. Q : How can you guarantee the production quality? A : The quality of our products has passed UL&CE&ISO140001&IS09001certification. We have 20+ years professional  sensor manufacturing history and 18+ years ODM labeling experience with global top sensor brands.   Contact Me   Contact us Lanbao New U Shape Photoelectric Sensor Rated Distance 5mm Ip50 Dc 24v Optical Position Sensor Lanbao New U Shape Photoelectric Sensor Rated Distance 5mm Ip50 Dc 24v Optical Position Sensor
