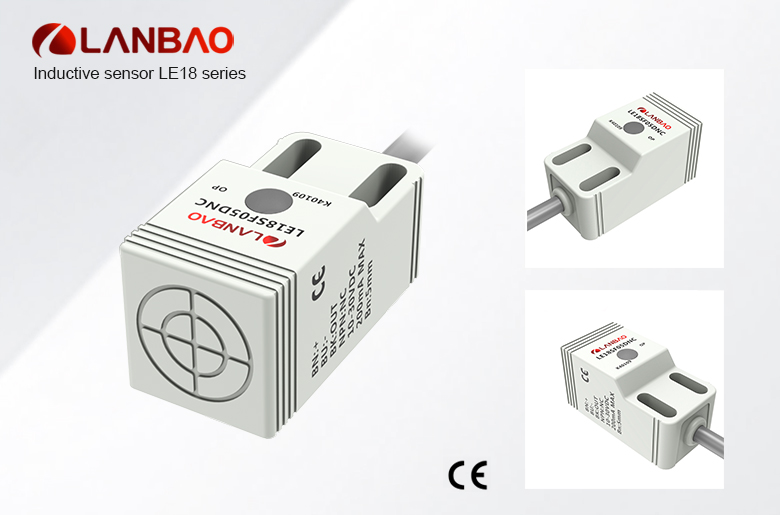

Low cost square 18*18mm size LE18 series cable connection 10-30VDC DC 3 wires proximity sensor
Basic Info
Product Description Product Features Low cost square 18*18mm size LE18 series cable connection 10-30VDC DC 3 wires Proximity Sensor    Product Features Contactless, no abrasion, high reliability; ASIC design; short-circuit protection,reverse polarity protection;  Perfect choice for mettalic target objects. Low cost square 18*18mm size LE18 series cable connection 10-30VDC DC 3 wires proximity sensor Specifications   Part number
NPN NO

LE18SF05DNO

LE18SN08DNO

NPN NC LE18SF05DNC LE18SN08DNC
PNP NO

LE18SF05DPO

LE18SN08DPO

PNP NC

LE18SF05DPC

LE18SN08DPC

  Technical specifications
Mounting Flush                                                    Nonflush
Rated distance [Sn] 5mm                                                    8mm
Assured distance [Sa] 0…4mm                                                0…6.4mm
Dimensions

18*18*36mm

Output

NC/NO(Depends on part number)

Supply voltage 10…30 VDC
Standard target Fe18*18*1t                                                      Fe24*24*1t
Switch-point drifts [%/Sr] ≤±10%
Hysteresis range [%/Sr] 1…20%
Repeat accuracy [R] ≤3%
Load current ≤100mA
Residual voltage ≤2.5V
Current consumption ≤10mA
Circuit protection Short circuit, overload, reverse polarity
Output indicator Yellow LED
Ambient temperature -25℃…70℃
Ambient humidity 35-95%RH
Frequency 700Hz                                                500Hz
Voltage withstand 1000V/AC 50/60Hz 60s
Insulation resistance ≥50MΩ(500VDC)
Vibration resistance 10…50Hz (1.5mm)
Degree of protection  IP67
Housing material PBT
Connection 2m PVC Cable

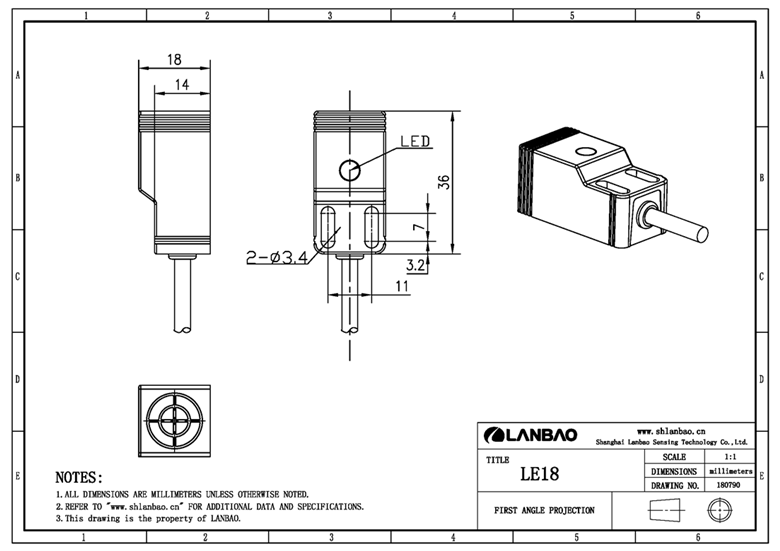

       Dimension                                                                                                                                               unit:mm  Low cost square 18*18mm size LE18 series cable connection 10-30VDC DC 3 wires proximity sensor                                                                             Wiring diagram     Low cost square 18*18mm size LE18 series cable connection 10-30VDC DC 3 wires proximity sensor           Packaging & Shipping   Packing Packaging is designed according to specific products for better protection. Low cost square 18*18mm size LE18 series cable connection 10-30VDC DC 3 wires proximity sensor   Company Information   About Lanbao Shanghai Lanbao sensing technology Co.,Ltd, member of China Instruments Manufacturers AssociationGoverning Units, established in 1998 in Shanghai, a leading domestic industrial automation product supplier,specializing in the research, development, production, sale and service of industrial sensors, sensor measurement  and control systems.   Our products cover over 30 series, 5000 specifications, including inductive sensor, Photoelectric Sensor,Capacitive sensor,Light Curtain,laser distance measuring sensors. Our products are widely used in warehouse logistics, parking, elevator,packaging,semi conductor, drone, textile, construction machinery, rail transportation,chemical, robot industry.   Low cost square 18*18mm size LE18 series cable connection 10-30VDC DC 3 wires proximity sensor   Our advantage 1 day shipping guarantee for stock item 20+ years OEM & ODM history with global top sensor brands 20+ years sensor manufacturing experience 90+ global R&D patents and copyrights 500+ employees(100+in R&D) 5000+ specification products 33000 sqm factory 3,000,000 pcs products per yea   Factory show   Factory show We are the first Chinese sensor manufacturer who designs our own smart production workshop:totally 40 products lines  including complete production lines which worked with Mitsubishi (Japan). 200 staffsin production line and 3 million products  per year.   Low cost square 18*18mm size LE18 series cable connection 10-30VDC DC 3 wires proximity sensor   Why choose us   Our certificates Our standard products already obtained  ISO9001, ISO14001, OHSAS18001, CE, UL ,CCC,ROHS certificates. Low cost square 18*18mm size LE18 series cable connection 10-30VDC DC 3 wires proximity sensor     International Exhibitions We attend about 10 international exhibitions every year , for example, IAS(Shanghai), IMTS (US), SPS(Germany),SPS  (Guangzhou) and other  industrial shows  (textile, robot, elevator, logistic etc.) .As a professional sensor manufacturer  with core  competitiveness and complete value chain, our products sell well in more than 100 countries in the world,  allowing more customers to appreciate the charm of “passing the world, sensing the future”.   Low cost square 18*18mm size LE18 series cable connection 10-30VDC DC 3 wires proximity sensor   Our partners Specializing  in  precision,Lanbao always adheres to the business philosophy  of”Quality First,Reasonable  Price, Prompt Delivery, and  Attentive  Service", maximize the needs and continuously create long-term value and potential growth for customers.With comprehensive and efficient services Lanbao's footprint has now spread to more than 100 countries and regions around the world such as US, Canada, Germany Thailand etc. Low cost square 18*18mm size LE18 series cable connection 10-30VDC DC 3 wires proximity sensor Our customers Specializing in precision, Lanbao always adheres to the business philosophy of “Quality First, Reasonable Price, Prompt Delivery, and Attentive Service”, maximize the needs and continuously create long-term value and potential growth for customers. With comprehensive and efficient services, Lanbao’s footprint has now spread to more than 100 countries and regions around the world …… Low cost square 18*18mm size LE18 series cable connection 10-30VDC DC 3 wires proximity sensor Our team Low cost square 18*18mm size LE18 series cable connection 10-30VDC DC 3 wires proximity sensor FAQ   FAQ Q : What is the MOQ? A : 1pcs for our own available designs Q : Can I customize a special sensor? A : Sure Q : Can I get a lower price if I order large quantities? A : Yes, Cheaper prices with bigger size orders Q : Can I get a sample? A : Of course, but you need to pay the minimum sample fee Q : When will you ship my order? A : 1 day shipping guarantee for stock item and 3-4 weeks for non-stock items. Q : How about the quality guarantee period ? A : Our warranty period is one year since from shipping date. Q : Can I add or delete items from my order if I change mind? A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it. Q : How can you guarantee the production quality? A : The quality of our products has passed UL&CE&ISO140001&IS09001certification. We have 20+ years professional  sensor manufacturing history and 18+ years ODM labeling experience with global top sensor brands.   Contact us Low cost square 18*18mm size LE18 series cable connection 10-30VDC DC 3 wires proximity sensor Low cost square 18*18mm size LE18 series cable connection 10-30VDC DC 3 wires proximity sensor
