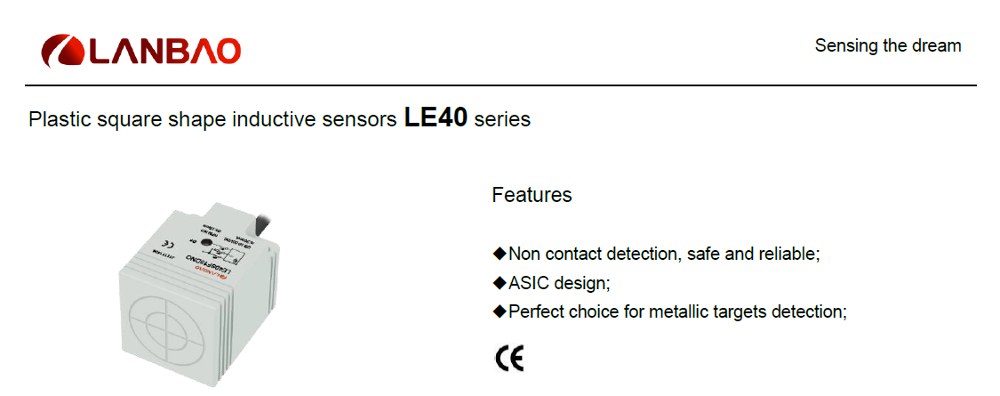

LANBAO LE40 Series Proximity Switch Sensor Industrial Hot Square 40*40mm Size 15mm 20mm Distance 10-30vdc DC 3/4 Position Sensor
Basic Info
Product Description Product Features LANBAO industrial hot square 40*40mm size LE40 series Proximity Switch Sensor 15mm 20mm distance 10-30vdc DC 3/4 wires CE mark   Product Features Contactless, no abrasion, high reliability; ASIC design; short-circuit protection,reverse polarity protection;  Perfect choice for mettalic target objects. Specifications   Part number
NPN NO

LE40SF15DNO

LE40SN20DNO

NPN NC LE40SF15DNC LE40SN20DNC
NPN NO+NC LE40SF15DNR LE40SN20DNR
PNP NO

LE40SF15DPO

LE40SN20DPO

PNP NC

LE40SF15DPC

LE40SN20DPC

PNP NO+NC

LE40SF15DPR

LE40SN20DPR

  Technical specifications
Mounting Flush                                                    Nonflush
Rated distance [Sn] 15mm                                                  20mm
Assured distance [Sa] 0…12mm                                              0…16mm
Dimensions

40*40*53mm

Output

NC/NO(Depends on part number)

Supply voltage 10…30 VDC
Standard target Fe45*45*1t                                                        Fe60*60*1t
Switch-point drifts [%/Sr] ≤±10%
Hysteresis range [%/Sr] 1…20%
Repeat accuracy [R] ≤3%
Load current ≤200mA
Residual voltage ≤2.5V
Current consumption ≤10mA
Circuit protection Short circuit, overload, reverse polarity
Output indicator Yellow LED
Ambient temperature -25℃…70℃
Ambient humidity 35-95%RH
Frequency 400Hz                                                200Hz
Voltage withstand 1000V/AC 50/60Hz 60s
Insulation resistance ≥50MΩ(500VDC)
Vibration resistance 10…50Hz (1.5mm)
Degree of protection  IP67
Housing material PBT
Connection 2m PVC cable

       Dimension                                                                                                                                               unit:mm          LANBAO LE40 Series Proximity Switch Sensor Industrial Hot Square 40*40mm Size 15mm 20mm Distance 10-30vdc DC 3/4 Position Sensor                                      Wiring diagram        LANBAO LE40 Series Proximity Switch Sensor Industrial Hot Square 40*40mm Size 15mm 20mm Distance 10-30vdc DC 3/4 Position Sensor        Packaging & Shipping   Packing Packaging is designed according to specific products for better protection. LANBAO LE40 Series Proximity Switch Sensor Industrial Hot Square 40*40mm Size 15mm 20mm Distance 10-30vdc DC 3/4 Position Sensor   Company Information   About Lanbao Shanghai Lanbao sensing technology Co.,Ltd, member of China Instruments Manufacturers AssociationGoverning Units, established in 1998 in Shanghai, a leading domestic industrial automation product supplier,specializing in the research, development, production, sale and service of industrial sensors, sensor measurement  and control systems.   Our products cover over 30 series, 5000 specifications, including inductive sensor, Photoelectric Sensor,Capacitive sensor,Light Curtain,laser distance measuring sensors. Our products are widely used in warehouse logistics, parking, elevator,packaging,semi conductor, drone, textile, construction machinery, rail transportation,chemical, robot industry.   LANBAO LE40 Series Proximity Switch Sensor Industrial Hot Square 40*40mm Size 15mm 20mm Distance 10-30vdc DC 3/4 Position Sensor   Our advantage 1 day shipping guarantee for stock item 20+ years OEM & ODM history with global top sensor brands 20+ years sensor manufacturing experience 90+ global R&D patents and copyrights 500+ employees(100+in R&D) 5000+ specification products 33000 sqm factory 3,000,000 pcs products per yea   Factory show   Factory show We are the first Chinese sensor manufacturer who designs our own smart production workshop:totally 40 products lines  including complete production lines which worked with Mitsubishi (Japan). 200 staffsin production line and 3 million products  per year.   LANBAO LE40 Series Proximity Switch Sensor Industrial Hot Square 40*40mm Size 15mm 20mm Distance 10-30vdc DC 3/4 Position Sensor   Why choose us   Our certificates Our standard products already obtained  ISO9001, ISO14001, OHSAS18001, CE, UL ,CCC,ROHS certificates. LANBAO LE40 Series Proximity Switch Sensor Industrial Hot Square 40*40mm Size 15mm 20mm Distance 10-30vdc DC 3/4 Position Sensor     International Exhibitions We attend about 10 international exhibitions every year , for example, IAS(Shanghai), IMTS (US), SPS(Germany),SPS  (Guangzhou) and other  industrial shows  (textile, robot, elevator, logistic etc.) .As a professional sensor manufacturer  with core  competitiveness and complete value chain, our products sell well in more than 100 countries in the world,  allowing more customers to appreciate the charm of “passing the world, sensing the future”.   LANBAO LE40 Series Proximity Switch Sensor Industrial Hot Square 40*40mm Size 15mm 20mm Distance 10-30vdc DC 3/4 Position Sensor   Our partners Specializing  in  precision,Lanbao always adheres to the business philosophy  of”Quality First,Reasonable  Price, Prompt Delivery, and  Attentive  Service", maximize the needs and continuously create long-term value and potential growth for customers.With comprehensive and efficient services Lanbao's footprint has now spread to more than 100 countries and regions around the world such as US, Canada, Germany Thailand etc. LANBAO LE40 Series Proximity Switch Sensor Industrial Hot Square 40*40mm Size 15mm 20mm Distance 10-30vdc DC 3/4 Position Sensor Our customers Specializing in precision, Lanbao always adheres to the business philosophy of “Quality First, Reasonable Price, Prompt Delivery, and Attentive Service”, maximize the needs and continuously create long-term value and potential growth for customers. With comprehensive and efficient services, Lanbao’s footprint has now spread to more than 100 countries and regions around the world …… LANBAO LE40 Series Proximity Switch Sensor Industrial Hot Square 40*40mm Size 15mm 20mm Distance 10-30vdc DC 3/4 Position Sensor Our team LANBAO LE40 Series Proximity Switch Sensor Industrial Hot Square 40*40mm Size 15mm 20mm Distance 10-30vdc DC 3/4 Position Sensor FAQ   FAQ Q : What is the MOQ? A : 1pcs for our own available designs Q : Can I customize a special sensor? A : Sure Q : Can I get a lower price if I order large quantities? A : Yes, Cheaper prices with bigger size orders Q : Can I get a sample? A : Of course, but you need to pay the minimum sample fee Q : When will you ship my order? A : 1 day shipping guarantee for stock item and 3-4 weeks for non-stock items. Q : How about the quality guarantee period ? A : Our warranty period is one year since from shipping date. Q : Can I add or delete items from my order if I change mind? A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it. Q : How can you guarantee the production quality? A : The quality of our products has passed UL&CE&ISO140001&IS09001certification. We have 20+ years professional  sensor manufacturing history and 18+ years ODM labeling experience with global top sensor brands.   Contact us LANBAO LE40 Series Proximity Switch Sensor Industrial Hot Square 40*40mm Size 15mm 20mm Distance 10-30vdc DC 3/4 Position Sensor LANBAO LE40 Series Proximity Switch Sensor Industrial Hot Square 40*40mm Size 15mm 20mm Distance 10-30vdc DC 3/4 Position Sensor
