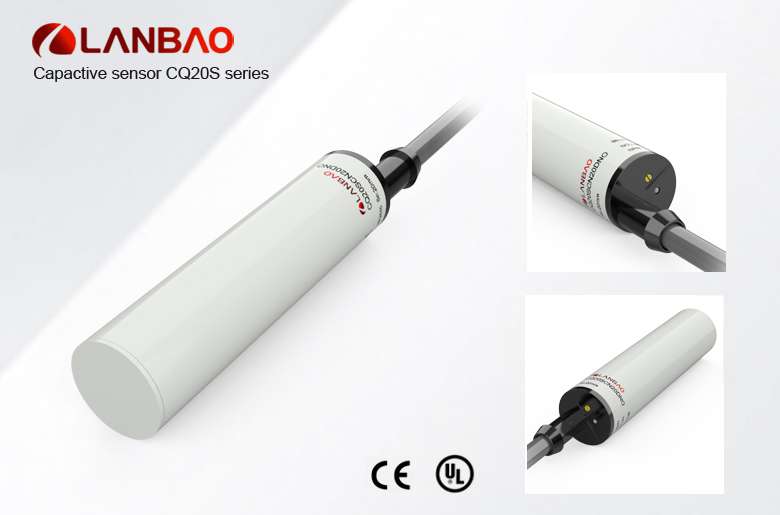

LANBAO CQ20SCN15ATO 2 Wire Ac 250V 15mm Detection Distance Capacitive Proximity Sensor Position Sensor Capacitance Sensor
Basic Info
Product Description IRLANBAO m30 cylindrical Proximity Sensor sensing distance 100m Ultra long distance detection photoelectric switch Product Features Be able to detect both metal and non-metal objectsBe able to detect various media via nonmetallic container;Reliable liquid level detectingLANBAO CQ20SCN15ATO 2 Wire Ac 250V 15mm Detection Distance Capacitive Proximity Sensor Position Sensor Capacitance Sensor Specifications Part number
AC 2 wires NOCQ20SCF10ATOCQ20SCN15ATO
AC 2 wires NCCQ20SCF10ATCCQ20SCN15ATC
 Technical specifications
MountingFlush                                     Non-flush
Rated distance(Sn)10mm (adjustable)                  15mm(adjustable)
Assured distance [Sa]0…8mm                                          0…12mm
Standard targetFe30*30*1t                                    Fe45*45*1t
OutputNO/NC(Depends on above part number)
Supply voltage20...250 VAC
DimensionsΦ20*80mm
Switch point drifts(%/Sr)≤±20%
Hysteresis range(%/Sr)3.....20%
Repeat accuracy(R)≤3%
Load current≤300mA
Residual voltage≤10V
Leakage current(Ir)≤3mA
Protection circuit......
Circuit protectionYellow LED
Ambient temperature-25ºC...70 ºC
Ambient humidity 35-95%RH
Switching frequency(F)

15 Hz

Voltage withstand2000V/AC 50/60Hz 60S
Insulation resistance≥50MΩ(500VDC)
Vibration resistance10...50Hz(1.5mm)
Protection degreeIP67
Connection type

2m PVC cable

Housing materialPBT

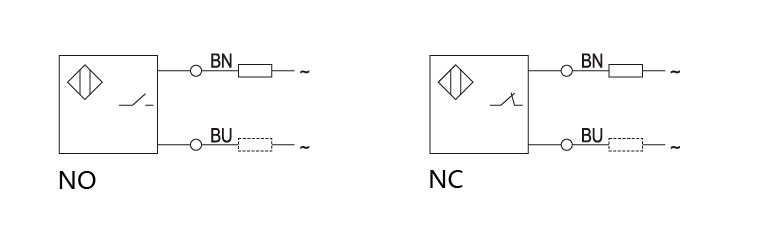

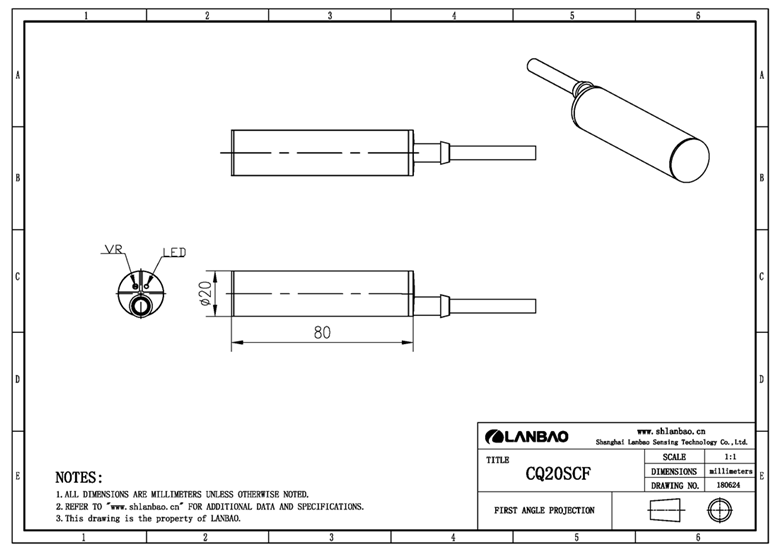

    Dimension                                                                                                                                               unit:mmLANBAO CQ20SCN15ATO 2 Wire Ac 250V 15mm Detection Distance Capacitive Proximity Sensor Position Sensor Capacitance Sensor       Wiring diagram  LANBAO CQ20SCN15ATO 2 Wire Ac 250V 15mm Detection Distance Capacitive Proximity Sensor Position Sensor Capacitance Sensor Packaging & Shipping PackingPackaging is designed according to specific products for better protection.LANBAO CQ20SCN15ATO 2 Wire Ac 250V 15mm Detection Distance Capacitive Proximity Sensor Position Sensor Capacitance Sensor Company Information About LanbaoShanghai Lanbao sensing technology Co.,Ltd, member of China Instruments Manufacturers AssociationGoverning Units,established in 1998 in Shanghai, a leading domestic industrial automation product supplier,specializing in the research,development, production, sale and service of industrial sensors, sensor measurement  and control systems. Our products cover over 30 series, 5000 specifications, including inductive sensor, Photoelectric Sensor,Capacitive sensor,Light Curtain,laser distance measuring sensors. Our products are widely used in warehouse logistics, parking, elevator, packaging,semi conductor, drone, textile, construction machinery, rail transportation,chemical, robot industry.LANBAO Standard function series cylindrical Cable connection proximity sensorLANBAO CQ20SCN15ATO 2 Wire Ac 250V 15mm Detection Distance Capacitive Proximity Sensor Position Sensor Capacitance Sensor Our advantage1 day shipping guarantee for stock item20+ years OEM & ODM history with global top sensor brands20+ years sensor manufacturing experience90+ global R&D patents and copyrights500+ employees(100+in R&D)5000+ specification products33000 sqm factory3,000,000 pcs products per yea Factory show We are the first Chinese sensor manufacturer who designs our own smart production workshop:totally 40 products lines including complete production lines which worked with Mitsubishi (Japan). 200 staffsin production line and 3million products per year.LANBAO CQ20SCN15ATO 2 Wire Ac 250V 15mm Detection Distance Capacitive Proximity Sensor Position Sensor Capacitance Sensor Certificates Our certificatesOur standard products already obtained  ISO9001, ISO14001, OHSAS18001, CE, UL ,CCC,ROHS certificates.LANBAO CQ20SCN15ATO 2 Wire Ac 250V 15mm Detection Distance Capacitive Proximity Sensor Position Sensor Capacitance Sensor  International Exhibi International ExhibitionsWe attend about 10 international exhibitions every year , for example, IAS(Shanghai), IMTS (US), SPS(Germany),SPS (Guangzhou) and other  industrial shows  (textile, robot, elevator, logistic etc.) .As a professional sensor manufacturer with core  competitiveness and complete value chain, our products sell well in more than 100 countries in the world, allowing more customers to appreciate the charm of “passing the world, sensing the future”. LANBAO CQ20SCN15ATO 2 Wire Ac 250V 15mm Detection Distance Capacitive Proximity Sensor Position Sensor Capacitance Sensor Our partnersSpecializing  in  precision,Lanbao always adheres to the business philosophy  of”Quality First,Reasonable  Price, PromptDelivery, and  Attentive  Service", maximize the needs and continuously create long-term value and potential growth forcustomers.With comprehensive and efficient services Lanbao's footprint has now spread to more than 100 countries andregions around the world such as US, Canada, Germany Thailand etc.LANBAO CQ20SCN15ATO 2 Wire Ac 250V 15mm Detection Distance Capacitive Proximity Sensor Position Sensor Capacitance SensorOur customersSpecializing in precision, Lanbao always adheres to the business philosophy of “Quality First, Reasonable Price, PromptDelivery, and Attentive Service”, maximize the needs and continuously create long-term value and potential growth forcustomers. With comprehensive and efficient services, Lanbao’s footprint has now spread to more than 100 countries andregions around the world ……LANBAO CQ20SCN15ATO 2 Wire Ac 250V 15mm Detection Distance Capacitive Proximity Sensor Position Sensor Capacitance SensorOur teamLANBAO CQ20SCN15ATO 2 Wire Ac 250V 15mm Detection Distance Capacitive Proximity Sensor Position Sensor Capacitance SensorFAQ FAQQ : What is the MOQ?A : 1pcs for our own available designsQ : Can I customize a special sensor?A : SureQ : Can I get a lower price if I order large quantities?A : Yes, Cheaper prices with bigger size ordersQ : Can I get a sample?A : Of course, but you need to pay the minimum sample feeQ : When will you ship my order?A : 1 day shipping guarantee for stock item and 3-4 weeks for non-stock items.Q : How about the quality guarantee period ?A : Our warranty period is one year since from shipping date.Q : Can I add or delete items from my order if I change mind?A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.Q : How can you guarantee the production quality?A : The quality of our products has passed UL&CE&ISO140001&IS09001certification. We have 20+ years professional sensor manufacturing history and 18+ years ODM labeling experience with global top sensor brands. Contact Me Contact usLANBAO CQ20SCN15ATO 2 Wire Ac 250V 15mm Detection Distance Capacitive Proximity Sensor Position Sensor Capacitance SensorLANBAO CQ20SCN15ATO 2 Wire Ac 250V 15mm Detection Distance Capacitive Proximity Sensor Position Sensor Capacitance Sensor

Contact us if you need more details on Proximity Sensor. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 2 Wire Ac Proximity Sensor、Capacitive Proximity Sensor. If these products fail to match your need, please contact us and we would like to provide relevant information.
