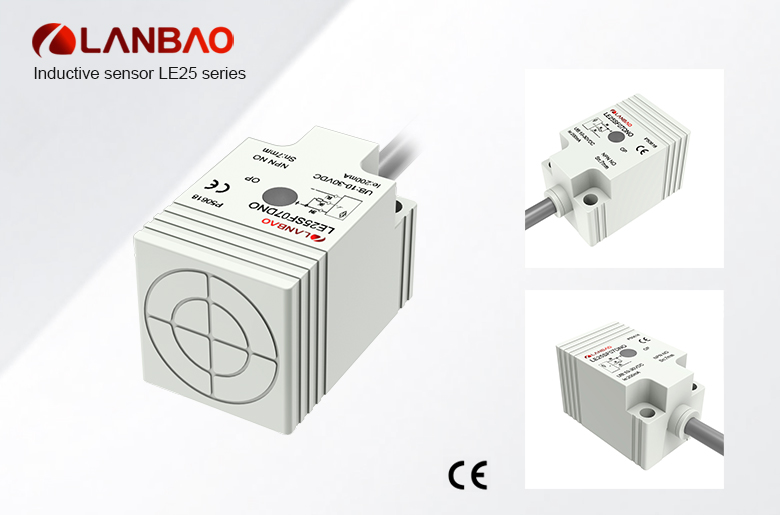

LANBAO industrial inductive switch sensor 25mm distance sensor PNP NO
Basic Info
Product Description LANBAO industrial Inductive Switch sensor 25mm distance sensor PNP NO  Non contact detection, safe and reliable; ASIC design Perfect choice for metallic targets detection   LANBAO industrial inductive switch sensor 25mm distance sensor PNP NO Specifications
  Model
NPN NO
LE25SF07DNO LE25SN10DNO
NPN NC LE25SF07DNC LE25SN10DNC

PNP NO LE25SF07DPO LE25SN10DPO
PNP NC LE25SF07DPC LE25SN10DPC
    Specifications
Detection type Standard
Rated distance 7mm                                       10mm
Mounting Flush                                       Non-flush
Size 25*25*39mm
Output NO/NC(depends on part NO.)
Standard target Fe 25*25*1t                            Fe 30*30*1t
Assured distance(Sa) 0.......5.6mm                               0......8mm
Supply voltage 10.....30VDC
Consunption current  ≤10mA
Load current ≤ 100mA
Voltage drop ≤ 2.5V
Circuit protection

Short-circuit,overload,reverse polarity protection

Repeat accuracy(R)  ≤3%
Response time ........
Switch-point drifts(%/Sr) ±10%
Ambient temperature -25.....70ºC
Hysteresis 1.....20%
Ambient humidity 35-95%RH
Switching frequency(F) 700Hz                                 500Hz
Voltage withstand 1000V/AC 50/60Hz 60s
Insulation resistance ≥50MΩ(500VDC)
Protection degree IP67
Certification CE
Meterial PBT
Connection 2m PVC cable
Vibration resistance 10…50Hz (1.5mm)

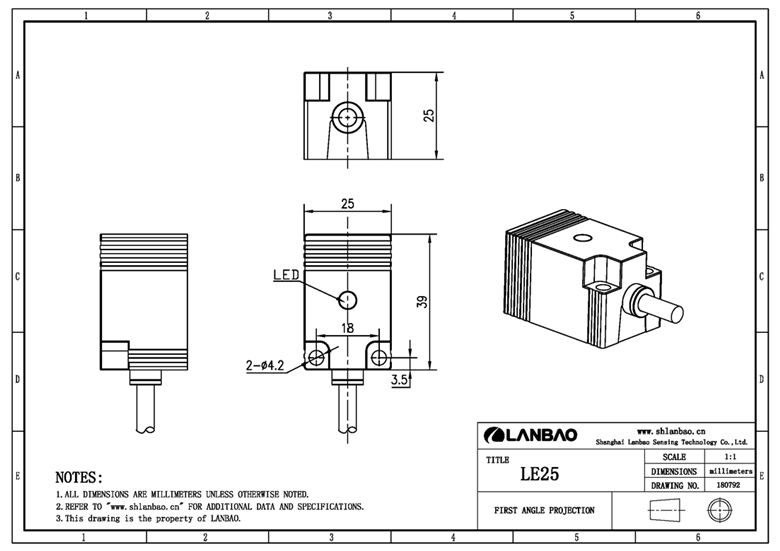

   Dimension                                                                                                                      unit:mm LANBAO industrial inductive switch sensor 25mm distance sensor PNP NO Circuit Diagrams LANBAO industrial inductive switch sensor 25mm distance sensor PNP NO                                                                           Packaging & Shipping   Packing Packaging is designed according to specific products for better protection. LANBAO industrial inductive switch sensor 25mm distance sensor PNP NO   Company Information   About Lanbao Shanghai Lanbao sensing technology Co.,Ltd, member of China Instruments Manufacturers AssociationGoverning Units, established in 1998 in Shanghai, a leading domestic industrial automation product supplier,specializing in the research, development, production, sale and service of industrial sensors, sensor measurement  and control systems.   Our products cover over 30 series, 5000 specifications, including inductive sensor, Photoelectric Sensor,Capacitive sensor,Light Curtain,laser distance measuring sensors. Our products are widely used in warehouse logistics, parking, elevator,packaging,semi conductor, drone, textile, construction machinery, rail transportation,chemical, robot industry.   LANBAO industrial inductive switch sensor 25mm distance sensor PNP NO   Our advantage 1 day shipping guarantee for stock item 20+ years OEM & ODM history with global top sensor brands 20+ years sensor manufacturing experience 90+ global R&D patents and copyrights 500+ employees(100+in R&D) 5000+ specification products 33000 sqm factory 3,000,000 pcs products per year   Factory show   Factory show We are the first Chinese sensor manufacturer who designs our own smart production workshop:totally 40 products lines  including complete production lines which worked with Mitsubishi (Japan). 200 staffsin production line and 3 million products  per year.   LANBAO industrial inductive switch sensor 25mm distance sensor PNP NO   Why choose us   Our certificates Our standard products already obtained  ISO9001, ISO14001, OHSAS18001, CE, UL ,CCC,ROHS certificates. LANBAO industrial inductive switch sensor 25mm distance sensor PNP NO     International Exhibitions We attend about 10 international exhibitions every year , for example, IAS(Shanghai), IMTS (US), SPS(Germany),SPS  (Guangzhou) and other  industrial shows  (textile, robot, elevator, logistic etc.) .As a professional sensor manufacturer  with core  competitiveness and complete value chain, our products sell well in more than 100 countries in the world,  allowing more customers to appreciate the charm of “passing the world, sensing the future”.   LANBAO industrial inductive switch sensor 25mm distance sensor PNP NO   Our partners Specializing  in  precision,Lanbao always adheres to the business philosophy  of”Quality First,Reasonable  Price, Prompt Delivery, and  Attentive  Service", maximize the needs and continuously create long-term value and potential growth for customers.With comprehensive and efficient services Lanbao's footprint has now spread to more than 100 countries and regions around the world such as US, Canada, Germany Thailand etc. LANBAO industrial inductive switch sensor 25mm distance sensor PNP NO Our customers Specializing in precision, Lanbao always adheres to the business philosophy of “Quality First, Reasonable Price, Prompt Delivery, and Attentive Service”, maximize the needs and continuously create long-term value and potential growth for customers. With comprehensive and efficient services, Lanbao’s footprint has now spread to more than 100 countries and regions around the world …… LANBAO industrial inductive switch sensor 25mm distance sensor PNP NO Our team LANBAO industrial inductive switch sensor 25mm distance sensor PNP NO FAQ   FAQ Q : What is the MOQ? A : 1pcs for our own available designs Q : Can I customize a special sensor? A : Sure Q : Can I get a lower price if I order large quantities? A : Yes, Cheaper prices with bigger size orders Q : Can I get a sample? A : Of course, but you need to pay the minimum sample fee Q : When will you ship my order? A : 1 day shipping guarantee for stock item and 3-4 weeks for non-stock items. Q : How about the quality guarantee period ? A : Our warranty period is one year since from shipping date. Q : Can I add or delete items from my order if I change mind? A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it. Q : How can you guarantee the production quality? A : The quality of our products has passed UL&CE&ISO140001&IS09001certification. We have 20+ years professional  sensor manufacturing history and 18+ years ODM labeling experience with global top sensor brands.   Contact us LANBAO industrial inductive switch sensor 25mm distance sensor PNP NO LANBAO industrial inductive switch sensor 25mm distance sensor PNP NO
