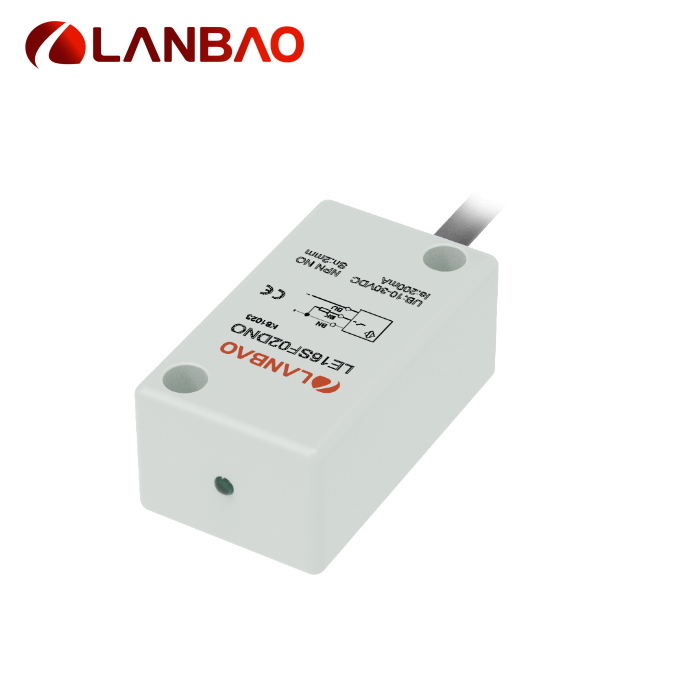

Find 3 Wire 10-30v/dc Sensing 4mm Range Proximity Sensor, 4mm Range Proximity Sensor Switch, Sensores De Proximidad Sensores on Industry Directory, Reliable Manufacturer/Supplier/Factory from China.
| Min. Order: | 1 Piece/Pieces |
|---|
Specifications Part number | NPN NO | LE16SF02DNO | LE16SN04DNO |
| NPN NC | LE16SF02DNC | LE16SN04DNC |
| PNP NO | LE16SF02DPO | LE16SN04DPO |
| PNP NC | LE16SF02DPC | LE16SN04DPC |
| Mounting | Flush Non-flush |
| Nominal distance Sn | 2mm 4mm |
| Guaranteed distance Sa | 0......1.6mm 0.......3.2mm |

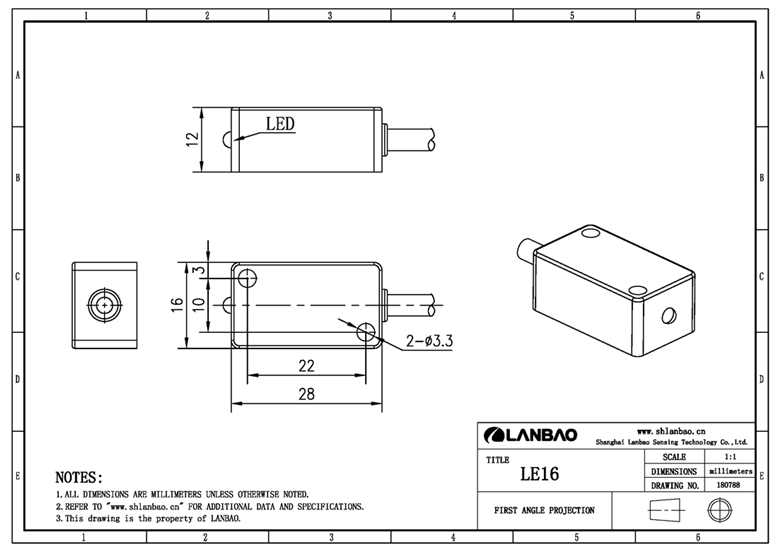

| Dimensions | 12*16*28mm |
| Output | NO/NC(Depending on the model) |
| Supply voltage | 10…30 VDC |
| Standard target | Fe 12*12*1t |
| Switch-point drifts [%/Sr] | ≤±10% |
| Hysteresis range [%/Sr] | 1…20% |
| Repeat accuracy [R] | ≤3% |
| Load current | ≤200mA |
| Residual voltage | ≤2.5V |
| Current consumption | ≤10mA |
| Circuit protection | Short-circuit,overload and reverse polarity |
| Output indicator | Yellow LED |
| Ambient temperature | -25℃…70℃ |
| Ambient humidity | 35-95%RH |
| Switching frequency [F] | 1000HZ 800Hz |
| Voltage withstand | 100V/AC 50/60Hz 60s |
| Insulation resistance | ≥50MΩ(500VDC) |
| Vibration resistance | 10…50Hz (1.5mm) |
| Degree of protection | IP67 |
| Housing material | PBT |
| Connection | 2m PVC cable |
Wiring diagram
