LANBAO photoelectric infrared sensor 10cm distance position sensor NPN NB/NC
Basic Info
Product Description Lanbao Photoelectric Infrared Sensor 10cm Distance Position Sensor Npn Nb/nc 18mm thread cylindrical mounting ,easy to install Short case for small installation space Big knob design for easy adjustment IP67 protection,suitable for harsh environments Small detection blind zone ,appliable to detection of objects in bright background LANBAO photoelectric infrared sensor 10cm distance position sensor NPN NB/NC Specifications
  Model
NPN NO/NC
PSS-BC10DNB
PNP NO/NC
PSS-BC10DPB
  Specifications
Detection type Diffuse sensor
Rated distance 10cm
Light source Infrared(940nm)
Size .......
Output NPN NO/NC    or       PNP NO/NC
Response time ≤ 0.5ms
Standard target  .......
Supply voltage 10.....30VDC
Consunption current  ≤20mA
Load current ≤ 200mA
Voltage drop ≤ 1V
Circuit protection

Short-circuit,overload,reverse polarity protection

NO/NC adjustment

white wires is connected to the positive pole or hang up,NO mode:white wire is connected to the negative pole,NC mode



Distance asjustment Single-turn potentiometer
Indicator Green LED:power,stable
  Yellow LED:output,overload or short circuit
Anti-ambient light Anti-sumligh interference ≤ 10000 lux
  Incandescent light interference ≤ 3000lux
Operating temperature -25.....55ºC
Storage  temperature -35.....70ºC
Hysteresis 3.....20%
Protection degree IP67
Certification CE
Meterial Housing:Nickel-copper alloy                        Filter:PMMA
Connection 2m PVC cable
Annex:M18 nut(2PCS),instruction manual
Remarks:1,Detection object id 90% white card with size 20cm *20cm

2,The green LED become weaker,whitch means that the signal is weaker and the sensor is unstable;the yellow LED flashes,whichmeans that the sensor is shorted or overloaded

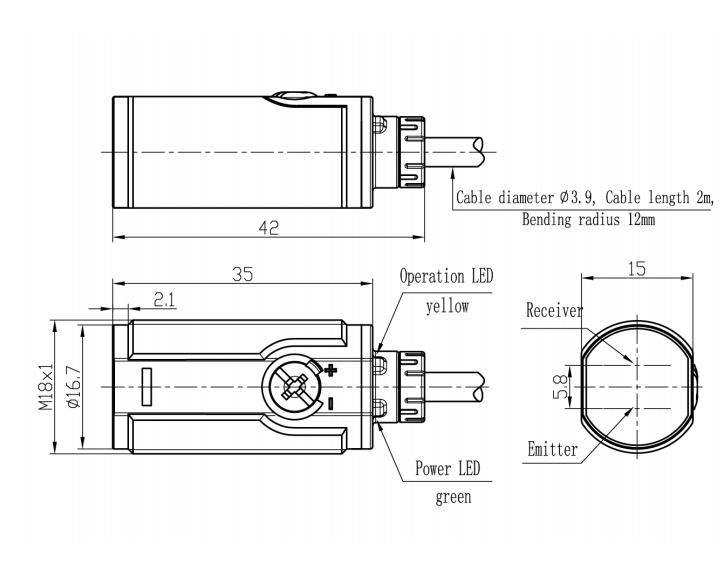

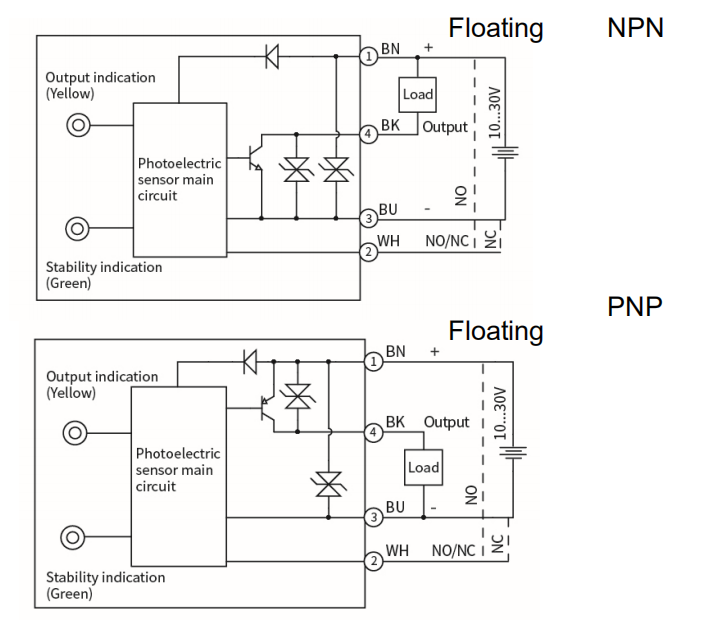

     Dimension                                                                                                                      unit:mm    Circuit Diagrams                                                                                             Packaging & Shipping   Packing Packaging is designed according to specific products for better protection. LANBAO photoelectric infrared sensor 10cm distance position sensor NPN NB/NC   Company Information   About Lanbao Shanghai Lanbao sensing technology Co.,Ltd, member of China Instruments Manufacturers AssociationGoverning Units, established in 1998 in Shanghai, a leading domestic industrial automation product supplier,specializing in the research, development, production, sale and service of industrial sensors, sensor measurement  and control systems.   Our products cover over 30 series, 5000 specifications, including inductive sensor, Photoelectric Sensor,Capacitive sensor,Light Curtain,laser distance measuring sensors. Our products are widely used in warehouse logistics, parking, elevator,packaging,semi conductor, drone, textile, construction machinery, rail transportation,chemical, robot industry.   LANBAO photoelectric infrared sensor 10cm distance position sensor NPN NB/NC   Our advantage 1 day shipping guarantee for stock item 20+ years OEM & ODM history with global top sensor brands 20+ years sensor manufacturing experience 90+ global R&D patents and copyrights 500+ employees(100+in R&D) 5000+ specification products 33000 sqm factory 3,000,000 pcs products per year   Factory show   Factory show We are the first Chinese sensor manufacturer who designs our own smart production workshop:totally 40 products lines  including complete production lines which worked with Mitsubishi (Japan). 200 staffsin production line and 3 million products  per year.   LANBAO photoelectric infrared sensor 10cm distance position sensor NPN NB/NC   Why choose us   Our certificates Our standard products already obtained  ISO9001, ISO14001, OHSAS18001, CE, UL ,CCC,ROHS certificates. LANBAO photoelectric infrared sensor 10cm distance position sensor NPN NB/NC     International Exhibitions We attend about 10 international exhibitions every year , for example, IAS(Shanghai), IMTS (US), SPS(Germany),SPS  (Guangzhou) and other  industrial shows  (textile, robot, elevator, logistic etc.) .As a professional sensor manufacturer  with core  competitiveness and complete value chain, our products sell well in more than 100 countries in the world,  allowing more customers to appreciate the charm of “passing the world, sensing the future”.   LANBAO photoelectric infrared sensor 10cm distance position sensor NPN NB/NC   Our partners Specializing  in  precision,Lanbao always adheres to the business philosophy  of”Quality First,Reasonable  Price, Prompt Delivery, and  Attentive  Service", maximize the needs and continuously create long-term value and potential growth for customers.With comprehensive and efficient services Lanbao's footprint has now spread to more than 100 countries and regions around the world such as US, Canada, Germany Thailand etc. LANBAO photoelectric infrared sensor 10cm distance position sensor NPN NB/NC Our customers Specializing in precision, Lanbao always adheres to the business philosophy of “Quality First, Reasonable Price, Prompt Delivery, and Attentive Service”, maximize the needs and continuously create long-term value and potential growth for customers. With comprehensive and efficient services, Lanbao’s footprint has now spread to more than 100 countries and regions around the world …… LANBAO photoelectric infrared sensor 10cm distance position sensor NPN NB/NC Our team LANBAO photoelectric infrared sensor 10cm distance position sensor NPN NB/NC FAQ   FAQ Q : What is the MOQ? A : 1pcs for our own available designs Q : Can I customize a special sensor? A : Sure Q : Can I get a lower price if I order large quantities? A : Yes, Cheaper prices with bigger size orders Q : Can I get a sample? A : Of course, but you need to pay the minimum sample fee Q : When will you ship my order? A : 1 day shipping guarantee for stock item and 3-4 weeks for non-stock items. Q : How about the quality guarantee period ? A : Our warranty period is one year since from shipping date. Q : Can I add or delete items from my order if I change mind? A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it. Q : How can you guarantee the production quality? A : The quality of our products has passed UL&CE&ISO140001&IS09001certification. We have 20+ years professional  sensor manufacturing history and 18+ years ODM labeling experience with global top sensor brands.   Contact us LANBAO photoelectric infrared sensor 10cm distance position sensor NPN NB/NC LANBAO photoelectric infrared sensor 10cm distance position sensor NPN NB/NC
