LR30 analog 0-10v 0-20mA output CE 2m pvc cable inductive sensor proximity switch
  • LR30 analog 0-10v 0-20mA output CE 2m pvc cable inductive sensor proximity switch
  • LR30 analog 0-10v 0-20mA output CE 2m pvc cable inductive sensor proximity switch
  • LR30 analog 0-10v 0-20mA output CE 2m pvc cable inductive sensor proximity switch
  • LR30 analog 0-10v 0-20mA output CE 2m pvc cable inductive sensor proximity switch
  • LR30 analog 0-10v 0-20mA output CE 2m pvc cable inductive sensor proximity switch
  • LR30 analog 0-10v 0-20mA output CE 2m pvc cable inductive sensor proximity switch
Unit Price: 20.16~42.85 USD
Min. Order: 1 Piece/Pieces
Basic Info
Product Description LR30 analog 0-10v 0-20mA output CE 2m pvc cable inductive sensor proximity switch    Product Features  Providing equivalent signal output along with target position; 0-10V, 0-20mA, 4-20mA Analog output; Perfect choice for displacement and thickness measurement;    LR30 analog 0-10v 0-20mA output CE 2m pvc cable inductive sensor proximity switch Specifications   Part number
 0-10V LR30XCF10LUM LR30XCN15LUM
0-20mA

LR30XCF10LIM

LR30XCN15LIM

4-20mA

LR30XCF10LI4M

LR30XCN15LI4M

0-10V + 0-20mA

LR30XCF10LIUM

LR30XCN15LIUM

    Technical specifications
Mounting type Flush                                                     Non-flush
Rated distance(Sn) 10mm                                                   15mm
Assured distance(Sa) 2...10mm                                              3....15mm
Dimensions M30*62mm                                           M30*74mm
Output

Current, voltage or current+voltage

Supply voltage 15...30 VDC
Standard target Fe 30*30*1t                                         Fe 40*40*1t
Switch point drifts(%/Sr) ≤±10%
Linearity

≤±5%

Repeat accuracy(R)

≤±3%

Load current

Voltage output: ≥4.7KΩ



Current output: ≤470Ω

Leakage current  ≤20mA
Protection circuit Reverse polarity
Indicator Yellow LED
Ambient temperature -25ºC...70 ºC
Ambient humidity  35-95%RH
Switching frequency(F) 200Hz                                                    100Hz
Voltage withstand 1000V/AC 50/60Hz 60s
Insulation resistance ≥500MΩ(500VDC)
Vibration resistance 10...50Hz(1.5mm)
Protection degree IP67
Connection type

2m PVC cable

Housing material Nickel-copper alloy

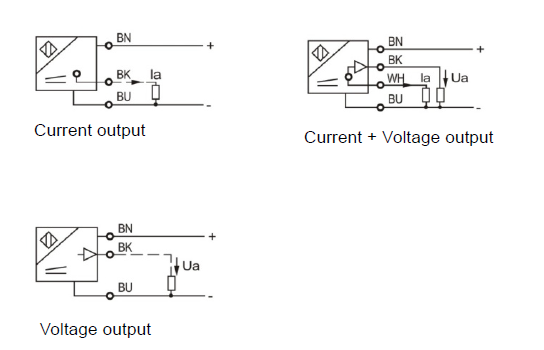

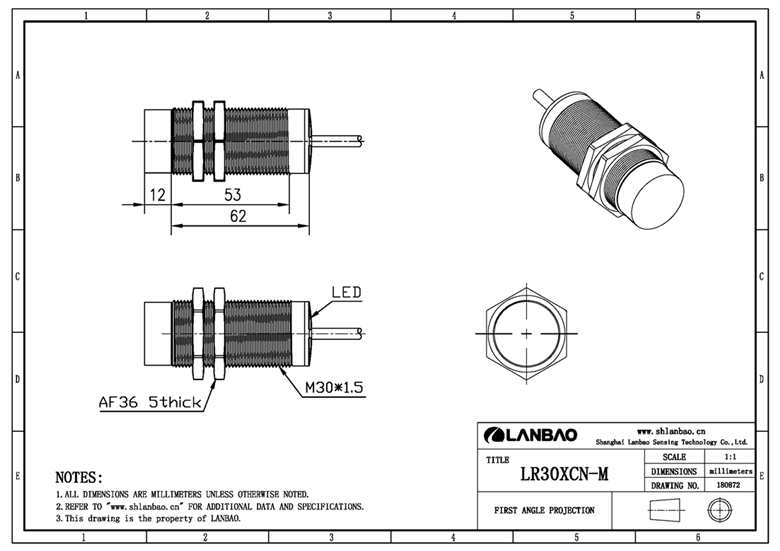

      Dimension                                                                                                                                               unit:mm    LR30 analog 0-10v 0-20mA output CE 2m pvc cable inductive sensor proximity switch             Wiring diagram       Packaging & Shipping   Packing Packaging is designed according to specific products for better protection. LR30 analog 0-10v 0-20mA output CE 2m pvc cable inductive sensor proximity switch   Company Information   About Lanbao Shanghai Lanbao sensing technology Co.,Ltd, member of China Instruments Manufacturers AssociationGoverning Units, established in 1998 in Shanghai, a leading domestic industrial automation product supplier,specializing in the research, development, production, sale and service of industrial sensors, sensor measurement  and control systems.   Our products cover over 30 series, 5000 specifications, including Inductive Sensor, Photoelectric Sensor,Capacitive sensor, Light Curtain,laser distance measuring sensors. Our products are widely used in warehouse logistics, parking, elevator,  packaging,semi conductor, drone, textile, construction machinery, rail transportation,chemical, robot industry. LANBAO Standard function series cylindrical Cable connection Proximity Sensor LR30 analog 0-10v 0-20mA output CE 2m pvc cable inductive sensor proximity switch   Our advantage 1 day shipping guarantee for stock item 20+ years OEM & ODM history with global top sensor brands 20+ years sensor manufacturing experience 90+ global R&D patents and copyrights 500+ employees(100+in R&D) 5000+ specification products 33000 sqm factory 3,000,000 pcs products per yea   Factory show   We are the first Chinese sensor manufacturer who designs our own smart production workshop:totally 40 products lines  including complete production lines which worked with Mitsubishi (Japan). 200 staffsin production line and 3million products  per year. LR30 analog 0-10v 0-20mA output CE 2m pvc cable inductive sensor proximity switch   Certificates   Our certificates Our standard products already obtained  ISO9001, ISO14001, OHSAS18001, CE, UL ,CCC,ROHS certificates. LR30 analog 0-10v 0-20mA output CE 2m pvc cable inductive sensor proximity switch     International Exhibi   International Exhibitions We attend about 10 international exhibitions every year , for example, IAS(Shanghai), IMTS (US), SPS(Germany),SPS  (Guangzhou) and other  industrial shows  (textile, robot, elevator, logistic etc.) .As a professional sensor manufacturer  with core  competitiveness and complete value chain, our products sell well in more than 100 countries in the world,  allowing more customers to appreciate the charm of “passing the world, sensing the future”.   LR30 analog 0-10v 0-20mA output CE 2m pvc cable inductive sensor proximity switch   Our partners Specializing  in  precision,Lanbao always adheres to the business philosophy  of”Quality First,Reasonable  Price, Prompt Delivery, and  Attentive  Service", maximize the needs and continuously create long-term value and potential growth for customers.With comprehensive and efficient services Lanbao's footprint has now spread to more than 100 countries and regions around the world such as US, Canada, Germany Thailand etc. LR30 analog 0-10v 0-20mA output CE 2m pvc cable inductive sensor proximity switch Our customers Specializing in precision, Lanbao always adheres to the business philosophy of “Quality First, Reasonable Price, Prompt Delivery, and Attentive Service”, maximize the needs and continuously create long-term value and potential growth for customers. With comprehensive and efficient services, Lanbao’s footprint has now spread to more than 100 countries and regions around the world …… LR30 analog 0-10v 0-20mA output CE 2m pvc cable inductive sensor proximity switch Our team LR30 analog 0-10v 0-20mA output CE 2m pvc cable inductive sensor proximity switch FAQ   FAQ Q : What is the MOQ? A : 1pcs for our own available designs Q : Can I customize a special sensor? A : Sure Q : Can I get a lower price if I order large quantities? A : Yes, Cheaper prices with bigger size orders Q : Can I get a sample? A : Of course, but you need to pay the minimum sample fee Q : When will you ship my order? A : 1 day shipping guarantee for stock item and 3-4 weeks for non-stock items. Q : How about the quality guarantee period ? A : Our warranty period is one year since from shipping date. Q : Can I add or delete items from my order if I change mind? A : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it. Q : How can you guarantee the production quality? A : The quality of our products has passed UL&CE&ISO140001&IS09001certification. We have 20+ years professional  sensor manufacturing history and 18+ years ODM labeling experience with global top sensor brands.   Contact Me   Contact us LR30 analog 0-10v 0-20mA output CE 2m pvc cable inductive sensor proximity switch LR30 analog 0-10v 0-20mA output CE 2m pvc cable inductive sensor proximity switch
